• Intelligent oil life minder
• Chrome exhaust tip
• Electric shift-on-the-fly transfer case
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Extra HD 200-amp alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*
• 6-3/4' pickup box -inc: (4) chrome tie-down hooks, partitionable & stackable storage
• (2) chrome front tow hooks
• Mono-beam front axle w/coil spring suspension
• Rear auxiliary springs
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• 2-ton mechanical jack

• (4) LT275/65R20E all-terrain OWL tires -inc: LT275/70R18E all-terrain BSW spare
• (4) 20" platinum cast-aluminum wheels -inc: black painted pockets
• Full-size spare tire w/lock & carrier
• Body-color front bumper
• Body-color rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• Satin chrome tailgate applique
• 6" angular chrome step bars
• Satin chrome grille w/bright chrome "c-Clamps"
• Autolamp/rainlamp dual beam halogen headlamps
• Fog lamps
• Pickup box/cargo lights
• Underhood service light
• PowerScope pwr telescoping & folding heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror, memory
• Chrome mirror caps
• Rear privacy glass
• Pwr sliding rear window w/defroster
• Variable intermittent windshield wipers
• Front/rear license plate brackets
• Chrome door handles w/body-color surround
• Removable locking tailgate w/black handle & TailGate Assist
• Tailgate step
• King Ranch fender badges

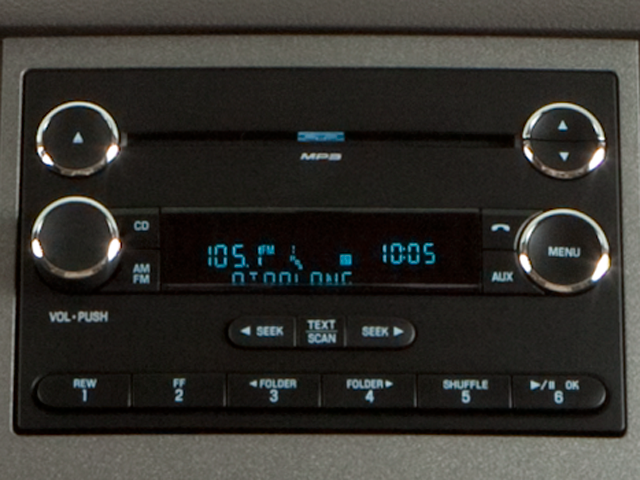

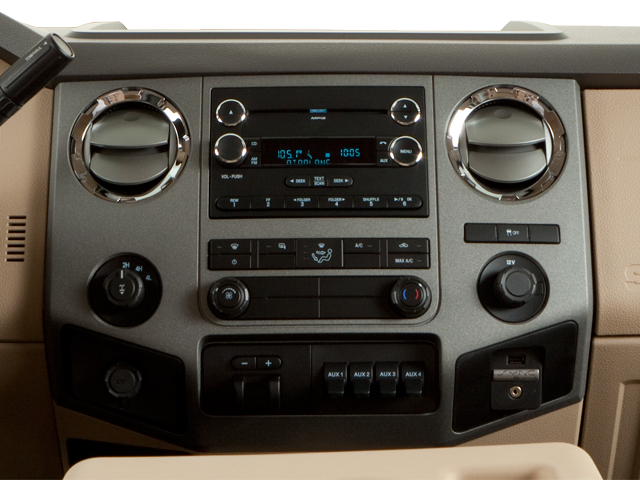

• Premium Sony AM/FM stereo w/CD player -inc: subwoofer, amplifier, center speaker, sail panel speaker grille, aux audio input jack
• Navigation system w/HD Radio & satellite broadcasts
• SiriusXM satellite radio (SiriusXM U.S. Satellite Service is available in the 48 contiguous United States and D.C.)
• SYNC voice activated communications & entertainment system w/AppLink -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, traffic, turn-by-turn directions, business search, send-to-SYNC from Mapquest, news, sports, weather (AppLink provides control of certain smart phone application using SYNC voice commands. Connect to apps like Pandora & more w/your iPhone, Blackberry or Android platform mobile phones.)
• MyFord Touch -inc: 8" LCD color touch screen in center-stack, 4.2" driver configurable LCD productivity screen display w/menus for gauge setup, trip computer, fuel economy, towing/off-road applications, 5-button message control on steering wheel, upper closable media hub w/(2) USB ports, SD card reader, audio/video input jacks, 12V pwrpoint

• Dual zone electronic automatic temperature control (DEATC)

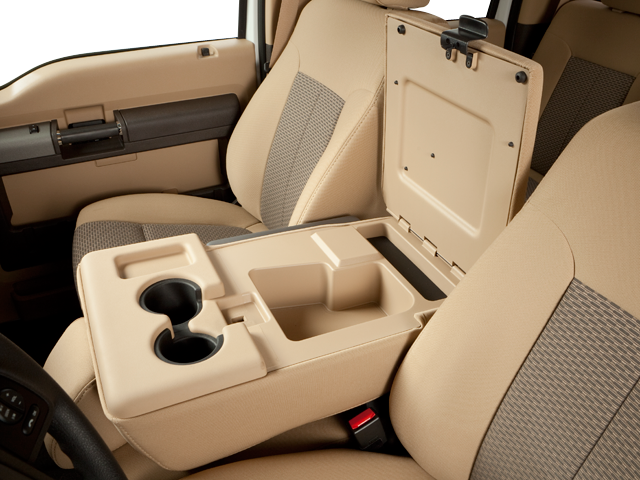

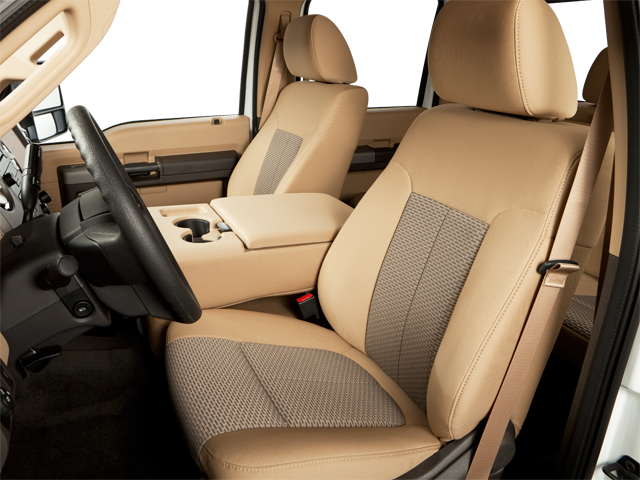

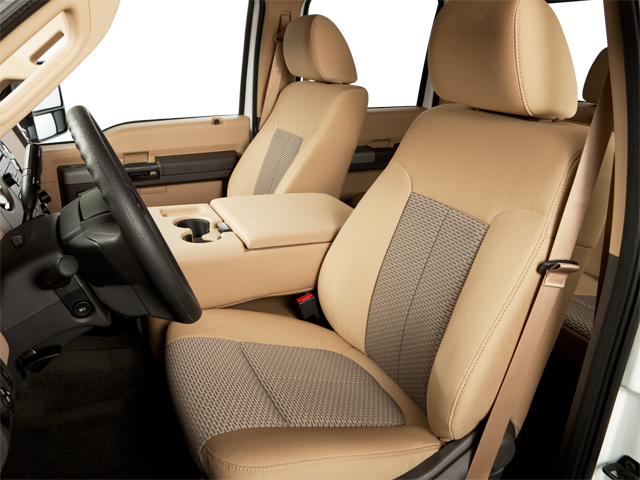

• Unique Platinum leather 40/console/40 front bucket seats -inc: 10-way pwr heated/cooled front seats w/pwr lumbar, easy entry/exit memory feature, (2) aux pwr outlets in console
• 4-way adjustable driver/passenger headrests

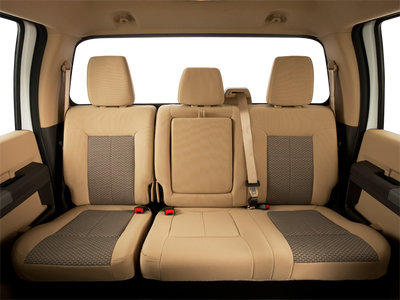

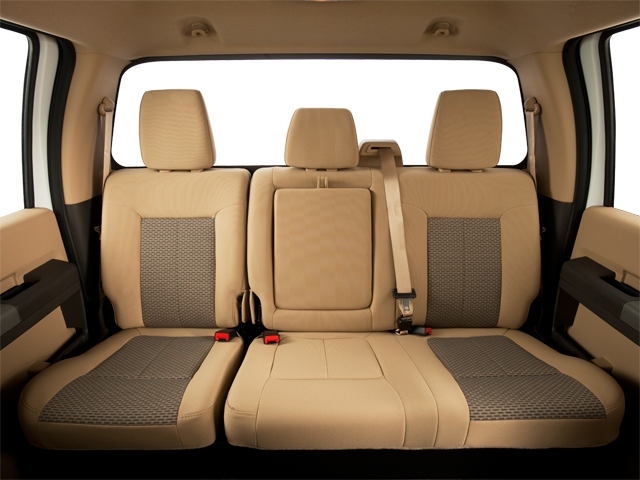

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates

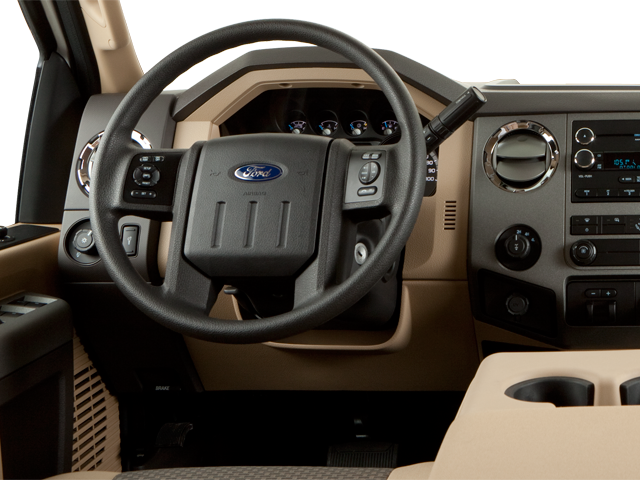

• Tilt/telescoping steering column

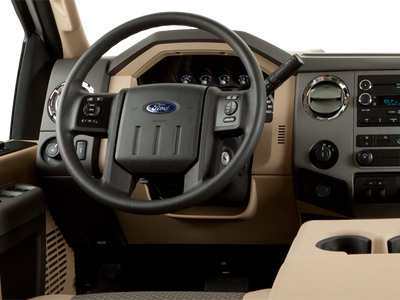

• Premium heated leather-wrapped & wood steering wheel

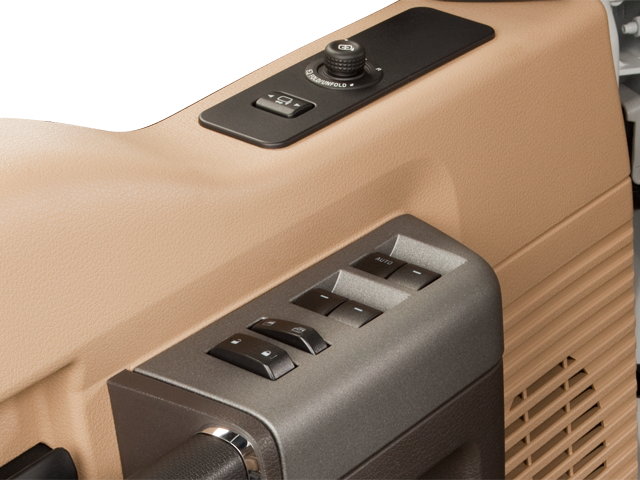

• Pwr windows w/driver one-touch-up/down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals w/memory
• Remote keyless entry & perimeter anti-theft alarm
• Remote start system
• SecuriLock passive anti-theft system (PATS)
• Cruise control
• 3-blink lane change signal
• Universal garage door opener
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• 110V/150W inverter aux pwr outlet in instrument panel & rear console
• Dash-top tray

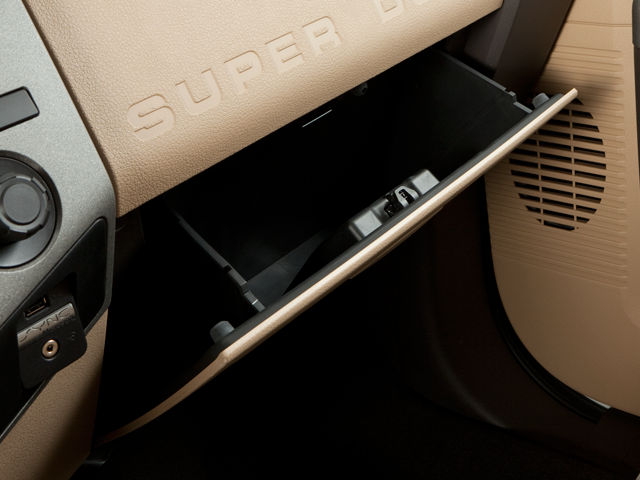

• Glove box

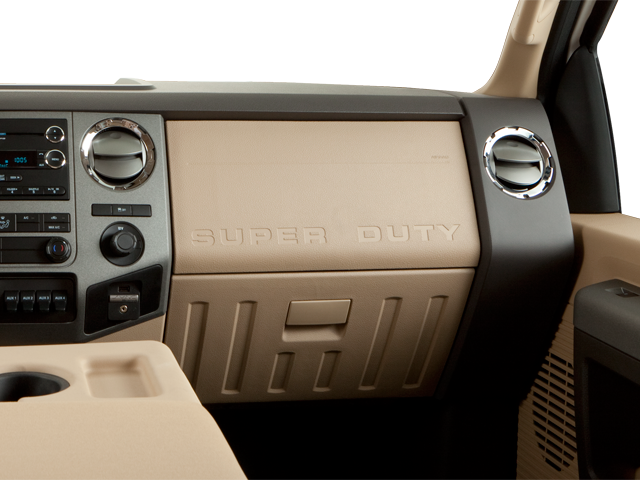

• Secondary glove box
• Instrument panel mounted storage
• Instrument panel mounted dual cupholders
• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, foundry upper applique, upper & lower map pockets
• Electrochromic rearview mirror w/video display
• Overhead console -inc: storage bins for universal garage door opener & sunglasses
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• Pwr 4-wheel disc anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Safety Canopy system
• Driver & front passenger front airbags
• Driver & front passenger side airbag/curtain
• Reverse vehicle aid sensor
• Rear view camera -inc: electrochromic rearview mirror w/video display in 8" color LCD touch screen in center stack
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute

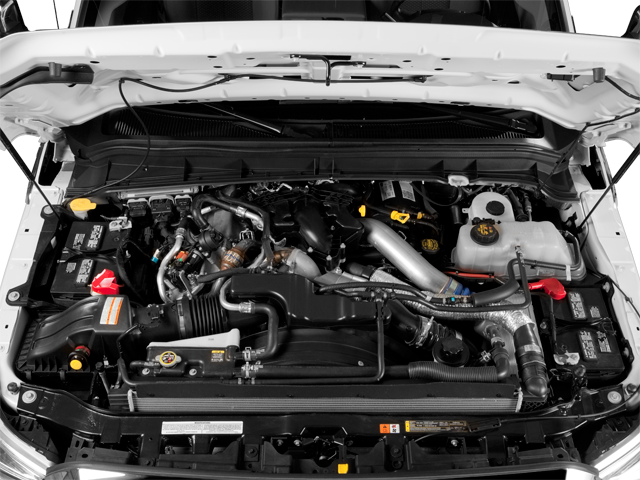

6.7L 32-VALVE PWR STROKE V8 TURBO DIESEL ENGINE

• 750 CCA 78-AH dual batteries
• 14K trailer hitch receiver w/2.5" trailer hitch & 2" sleeve reducer

• Locking Pickup Truck Tailgate
• Power Door Locks
• Vehicle Anti-Theft
• 4WD/AWD
• ABS Brakes
• Traction Control
• Vehicle Stability Control System
• Driver Airbag
• Front Side Airbag
• Passenger Airbag
• Side Head Curtain Airbag
• Keyless Entry
• Air Conditioning
• Cruise Control
• Tachometer
• Tilt Steering
• Tilt Steering Column
• Steering Wheel Mounted Controls
• Telescopic Steering Column
• Tire Pressure Monitor
• Trip Computer
• AM/FM Radio
• CD Player
• Front Split Bench Seat
• Second Row Folding Seat
• Cargo Area Tiedowns
• Pickup Truck Cargo Box Light
• Front Air Dam
• Alloy Wheels
• Full Size Spare Tire
• Power Windows
• Heated Exterior Mirror
• Power Adjustable Exterior Mirror
• Deep Tinted Glass
• Interval Wipers
• Tow Hitch Receiver

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6730
• Curb Weight - Front (lbs): 4540
• Curb Weight - Front (lbs): 3966
• Curb Weight - Rear (lbs): 2966
• Curb Weight - Rear (lbs): 2884
• Gross Vehicle Weight Rating Cap (lbs): 11200
• Gross Vehicle Weight Rating Cap (lbs): 10600
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3925
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2975
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6290
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCH
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT275/65R20E
• Rear Tire Size: LT275/65R20E
• Spare Tire Size: LT275/70R18E
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.0
• Rear Wheel Size (in): 20 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.8
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Ext'd Cab Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.6
• Summary

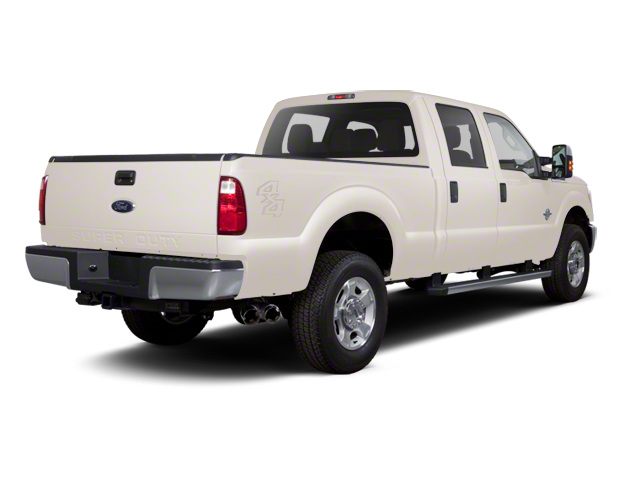

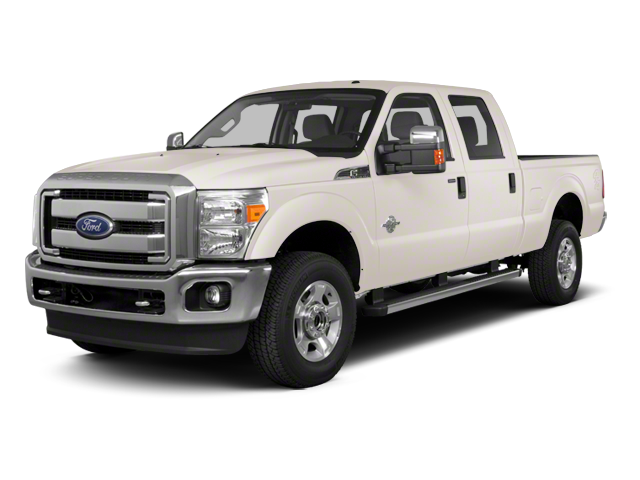

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab Pickup
• Body Code: 156" WB
